Rumah ProdukLayar Lcd IPSCH350HV47C-L 3.5 Inch 320x480 IPS TFT LCD Display Module with SPI and Thick Glass Cover

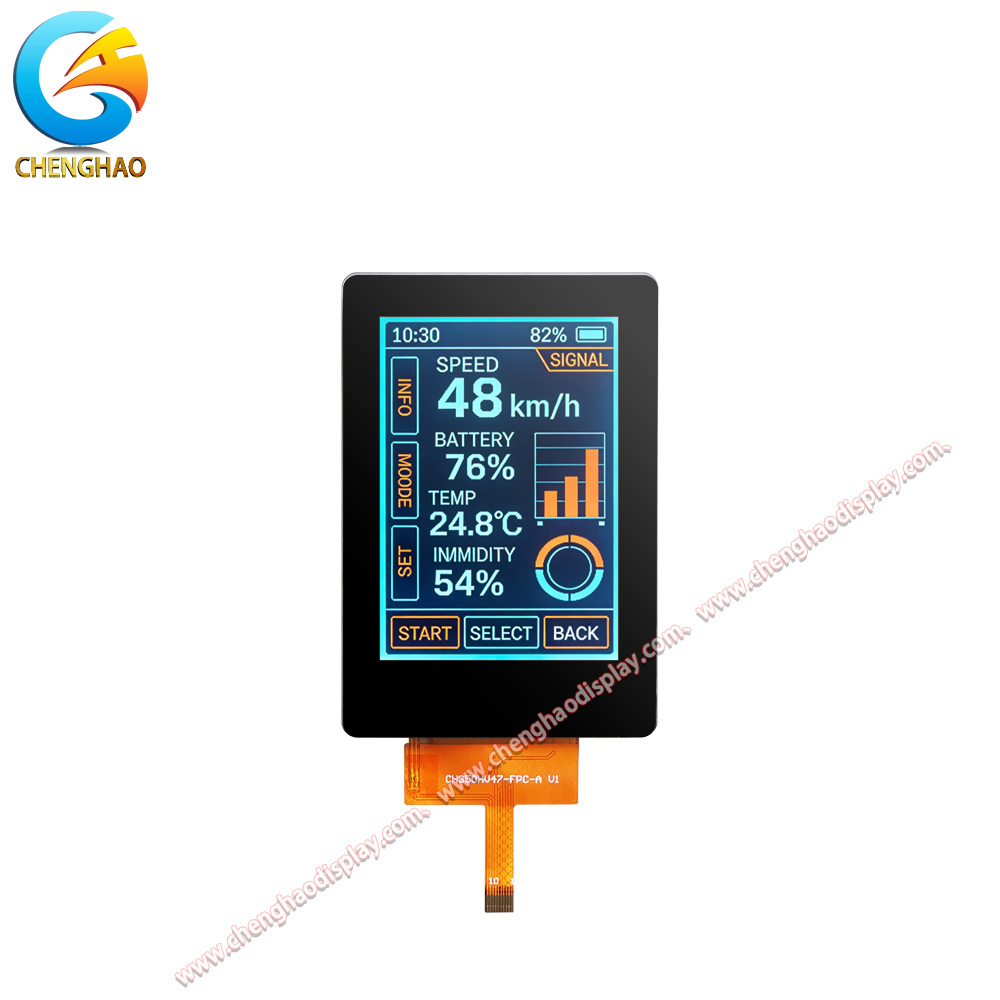

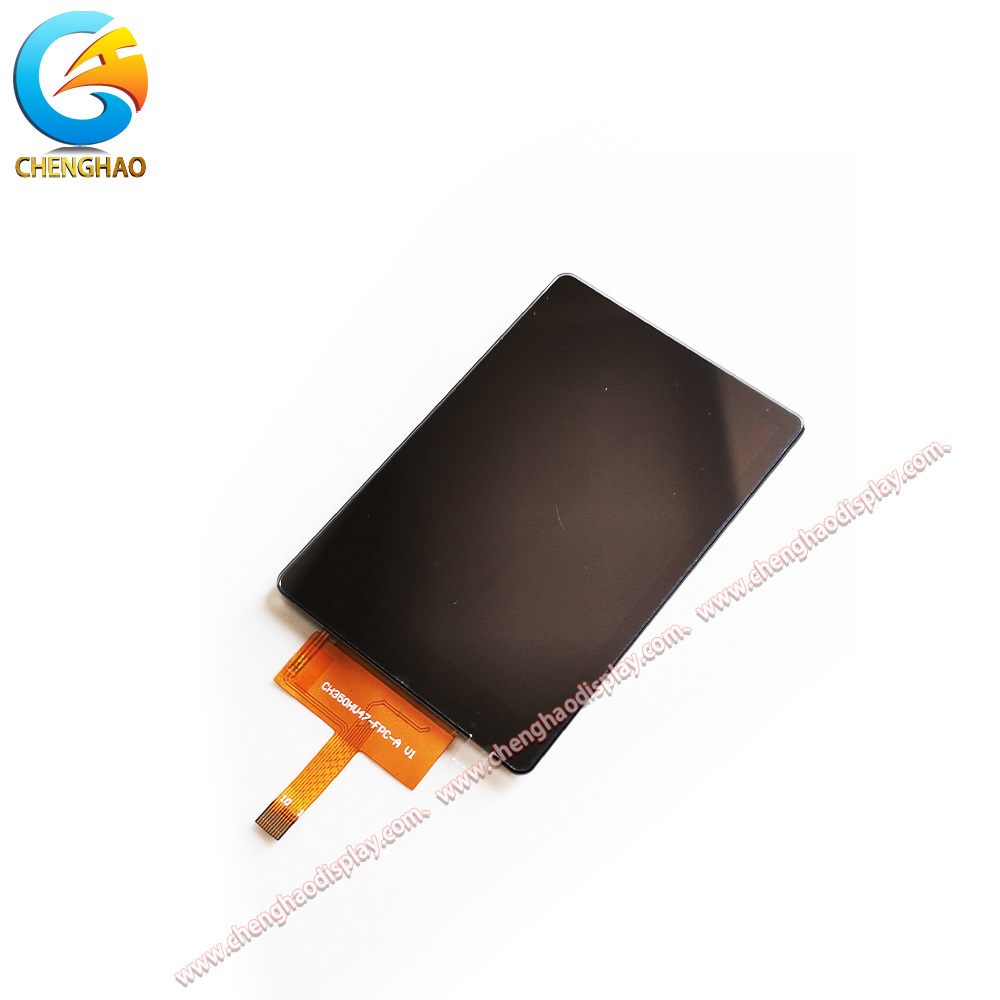

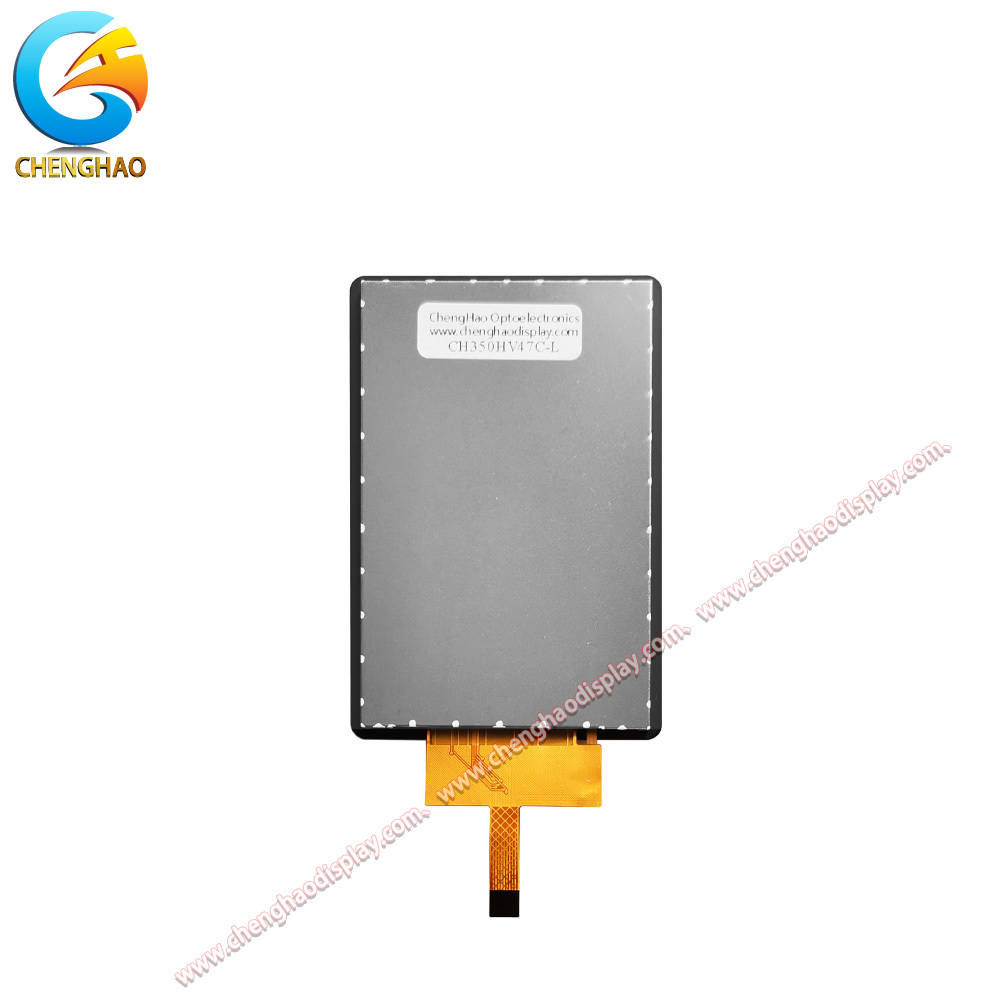

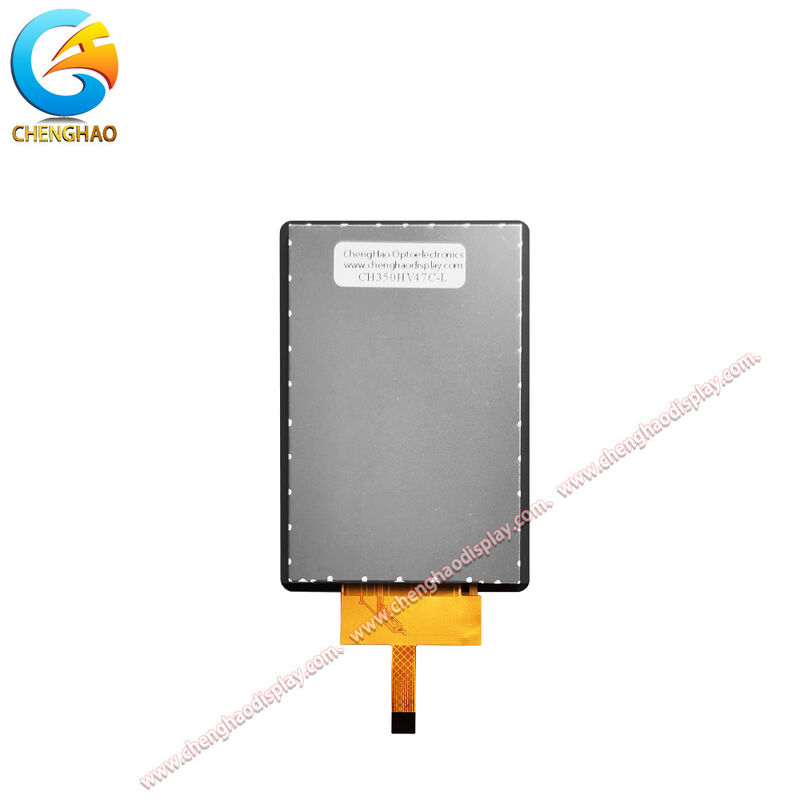

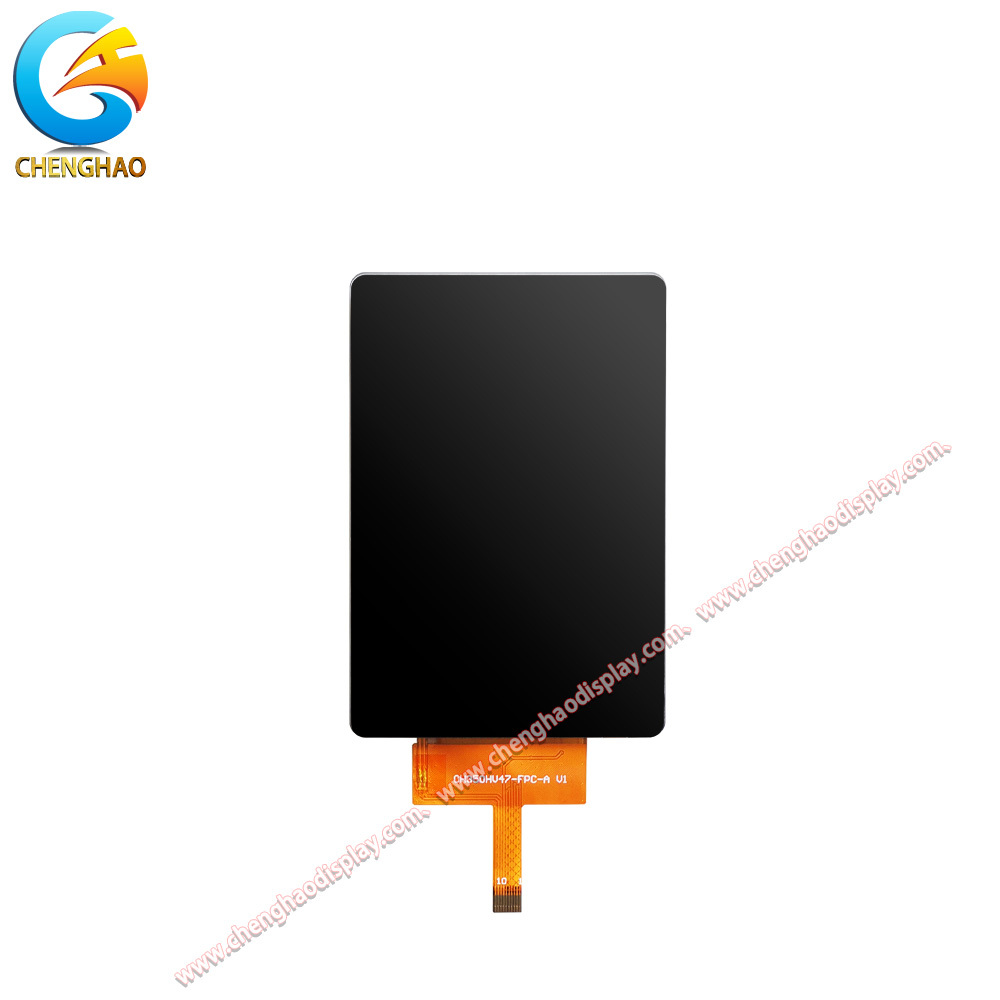

CH350HV47C-L 3.5 Inch 320x480 IPS TFT LCD Display Module with SPI and Thick Glass Cover
CH350HV47C-L 3.5 Inch 320x480 IPS TFT LCD Display Module with SPI and Thick Glass Cover
CH350HV47C-L 3.5 Inch 320x480 IPS TFT LCD Display Module with SPI and Thick Glass Cover CH350HV47C-L 3.5 Inch 320x480 IPS TFT LCD Display Module with SPI and Thick Glass Cover CH350HV47C-L 3.5 Inch 320x480 IPS TFT LCD Display Module with SPI and Thick Glass Cover CH350HV47C-L 3.5 Inch 320x480 IPS TFT LCD Display Module with SPI and Thick Glass Cover CH350HV47C-L 3.5 Inch 320x480 IPS TFT LCD Display Module with SPI and Thick Glass Cover
Hubungi sekarang

CH350HV47C-L 3.5 Inch 320x480 IPS TFT LCD Display Module with SPI and Thick Glass Cover

Kuantitas min Order : 100 buah Harga : Contact us for quotation
Kemasan rincian : Paket Ekspor Standar Waktu pengiriman : 7-15 hari kerja
Syarat-syarat pembayaran : T/T Menyediakan kemampuan : 300.000 lembar/bulan
Tempat asal: Tiongkok Nama merek: chenghao optoelectronic
Sertifikasi: RoHS & CE & FCC Nomor model: CH350HV47C-L
Dokumen: Brosur Produk PDF

Informasi Detail
Modul No: CH350HV47C-L Modus tampilan: IPS / Transmisif / Biasanya Hitam
Ukuran Layar: 3,5 inci Resolusi: 320x480 titik
Arah Pandang: 80/80/80/80 Kecerahan Layar: 800 CD/m² (min.)
Antarmuka Modul: SPI Nomor Pin FPC: 10
Suhu Operasional: -25 ° C hingga +70 ° C. Suhu Penyimpanan: -30°C hingga +80°C
Ukuran modul: 58,00 x 86,00 x 4,10mm Ukuran Area Aktif: 480,96 x 73,44 mm

Deskripsi Produk

Product Description The CH350HV47C-L is a 3.5 inch IPS TFT LCD display module with a 320 x 480 pixel resolution and full 80/80/80/80 viewing angles. Its transmissive, normally black panel delivers a minimum brightness of 800 cd/m² through a 10-pin SPI interface. The module combines a 2.1 mm TFT assembly with a 1.8 mm glass cover lens and 0.2 mm optical adhesive for a total thickness of approximately 4.1 mm. The active area measures 48.96 x 73.44 mm, and the outline is 58.00 x
